FW4 915x445 CUBIS with 4 Rings, 1 Furniture Kit, PIA Approved

https://www.fttxenergy.com/web/image/product.template/1347/image_1920?unique=4e8b9ea

FW4 915x445 CUBIS with 4 Rings, 1 Furniture Kit, PIA Approved

£ 0.00 0.0 GBP £ 0.00 VAT Excluded

417.29 VAT Excluded

This combination does not exist.


Product Specification (PDF):

Product Description

Concrete Infill covers are manufactured to suit an extensive range of clear openings, an industry favourite for their simplicity and ease of use.

The product is designed for use in both footway and roadway installations where it provides access to underground ducting (EN124 Class A15-B125)

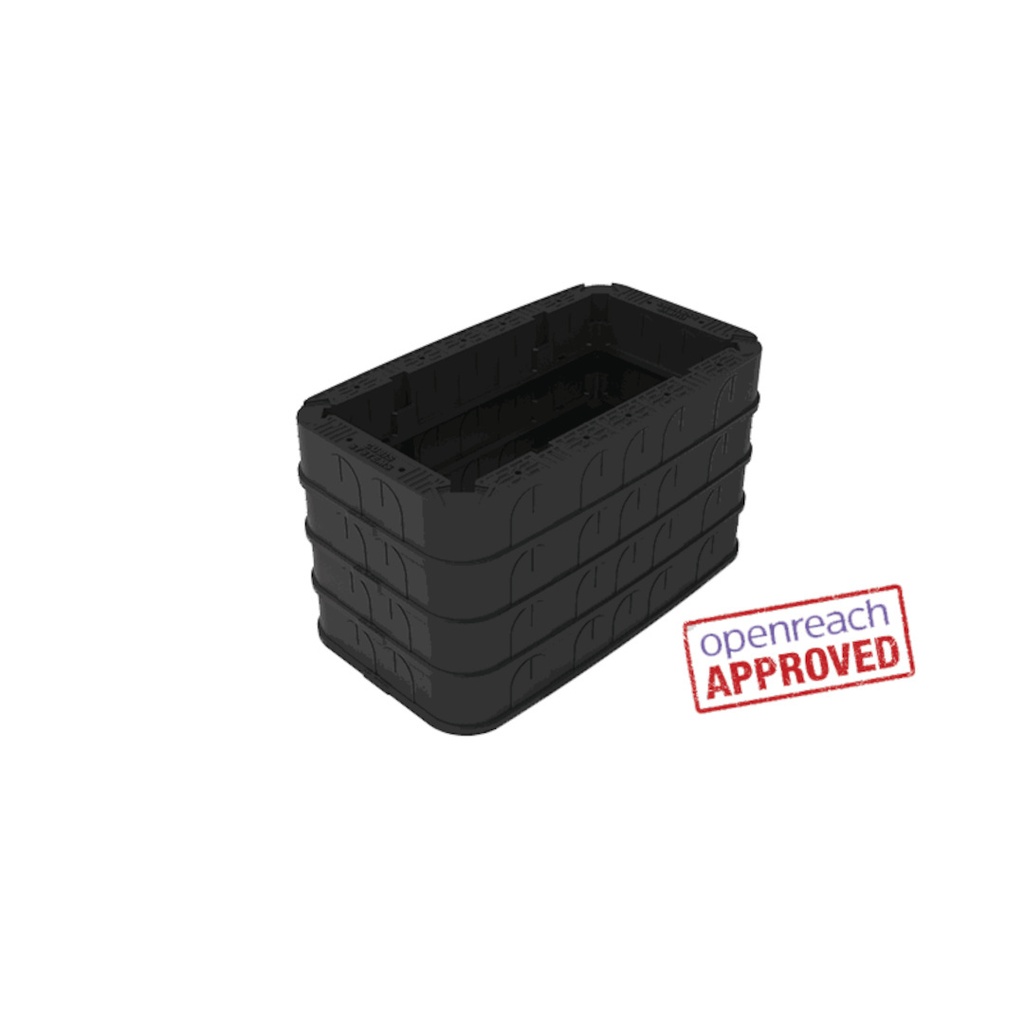

The rings are a range of modular access chambers, made from 150mm deep riser sections which stack and interlock to offer flexibility in finished chamber depths.

It has been tested to withstand vertical loads of EN124 D400.

Concrete Frame Details

Clear Opening: 916mm x 446mm

External Dimensions: 1008mm x 538mm

Depth: 52mm

Weight: 6.5kg

Concrete Frame Cover Details

Cover Type: 1 x 1000mm x 530mm

Weight: 64kg

Concrete Frame Key Features

• Easy slide out covers

• No inherent scrap value

• Anti-slip surface



The rings are a range of modular access chambers, made from 150mm deep riser sections which stack and interlock to offer flexibility in finished chamber depths.

It has been tested to withstand vertical loads of EN124 D400.

Rings Details

Clear Opening – 915mm x 445mm

External Dimensions – 1106mm x 445mm

Stacking Depth – 150mm

Actual Depth – 160mm

Weight – 10.9kg
