Bracket No.32

https://www.fttxenergy.com/web/image/product.template/1807/image_1920?unique=7f8bad7

Bracket No.32

£ 0.00 0.0 GBP £ 0.00 VAT Excluded

1.00 VAT Excluded

This combination does not exist.


Product Specification (PDF):

Product Description

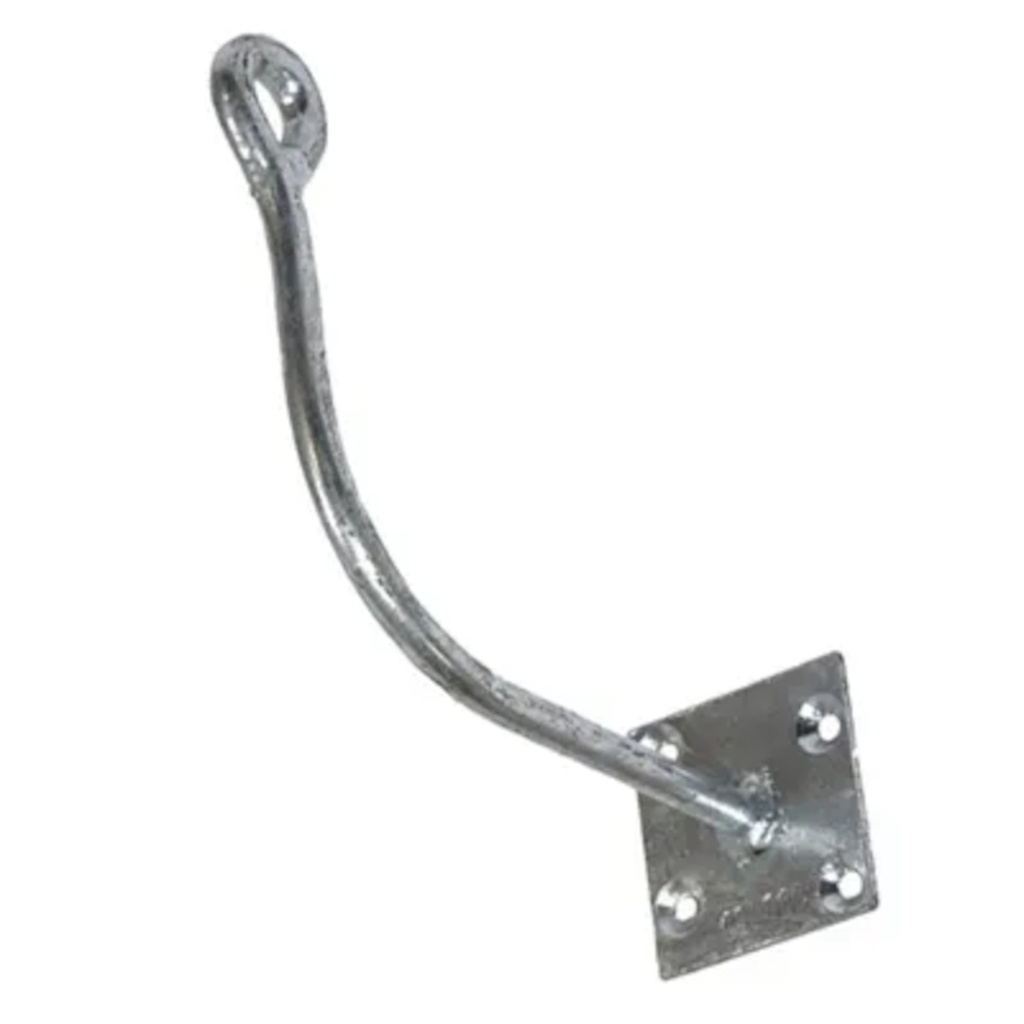

A dropwire fixing consisting of a galvanised steel “J” shaped Bracket with a welded loop and a plate with four holes at the other end. Designed to attach a dropwire clamp to timber or brickwork at end users' premises where additional height clearance is required e.g. a Bungalow.

Note: Dropwire span limit for this Bracket is 40 metres. On timber this Bracket is designed to be secured with 4 No 12 x 1 Zinc plated screws.

On brickwork (without rendering or cladding) this Bracket is designed to be secured with 2 x Stud Expanding 1A and 2 No 12 x 1½” Zinc plated CSK screws and Plugs Screw Fixing 1A.
