Product Description

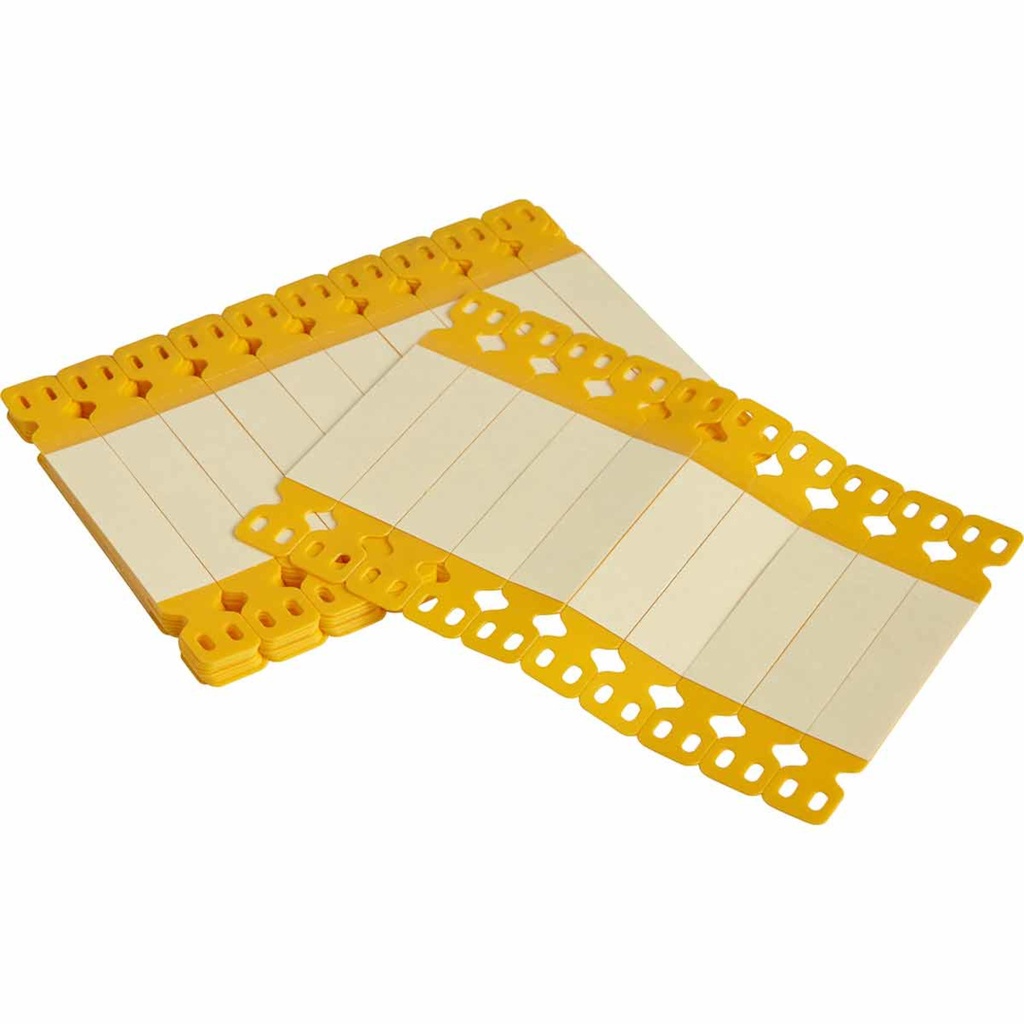

Laminate carrier for cable identification with strip to laminate text label. The carrier is to be fixed with 2 cable ties directly on the cables and wires. We recommend you use the laminate carriers in combination with the THTTL or PTLTL range of labels.
Width (mm) – 103
Height (mm) – 15
Overlaminate Dimensions – 15mm (H) x 55mm (W)
Horizontal Repeat (mm) - 15
Overlaminate Dimensions (Height) (mm) - 15
Overlaminate Dimensions C (mm) – 55
Web Width (mm) – 103
Dimensions – 103mm (W) x 15mm (H)
Material Type – Polypropylene Tag with Polyester Overlaminate
Thickness – 0.523mm
Colour – Yellow
Max. Service Temp. (Degree Celsius) 100
Min. Service Temp. (Degree Celsius) -70
Finish – Gloss
Resistance Properties – Abrasion Resistant, Chemical Resistant
Compliance
UNSPSC – 55121503
RoHS Compliance Status – Compliant with Directive 2011/65/EU and 2015/863
