Splice Protectors 40 x 0.8mm pin x2.2mm
Splice Protectors 40 x 0.8mm pin x2.2mm
Product Description:

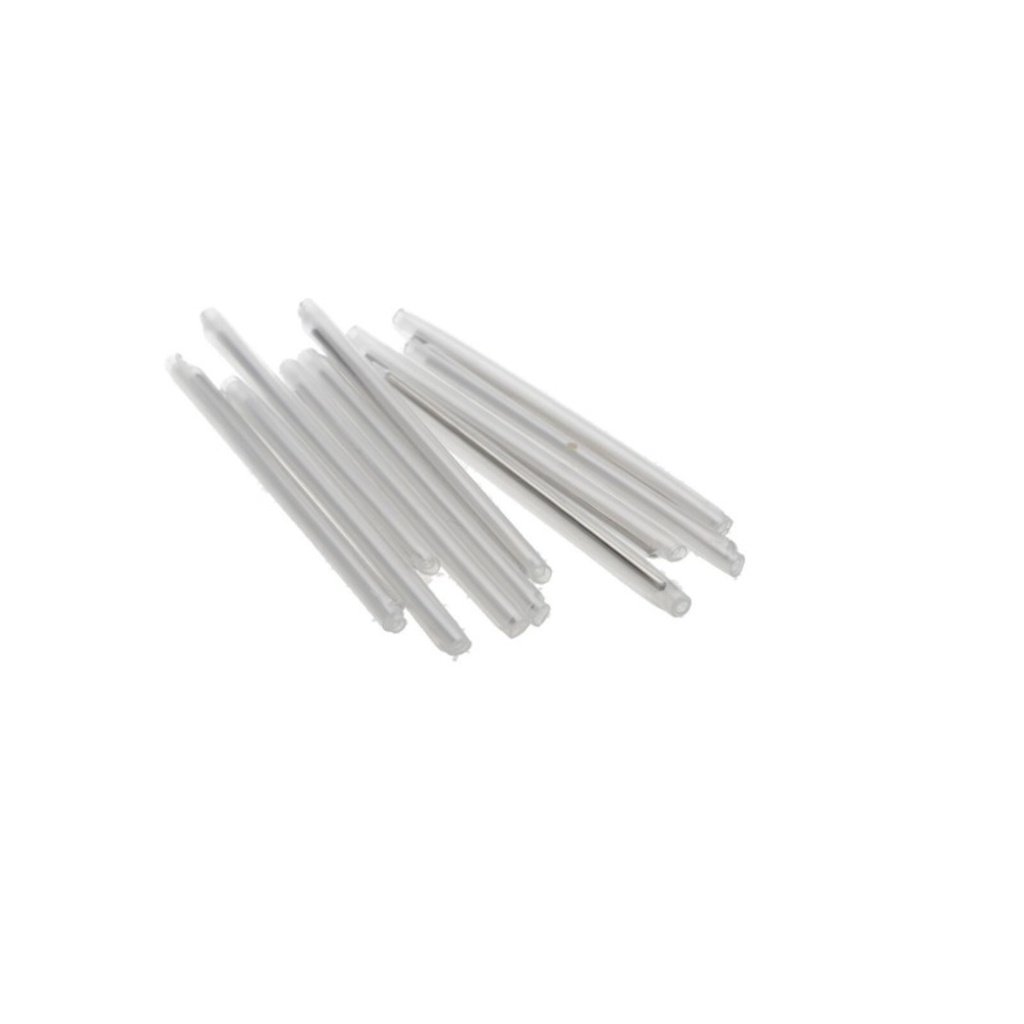

The Splice Protector 40mm x 0.8mm Pin x 2.2mm is a high-quality heat-shrink protection sleeve designed to safeguard optical fiber fusion splices from environmental damage and mechanical stress. This sleeve features a reinforcing steel rod (0.8mm diameter) and a dual-layer heat-shrink tube that ensures proper fiber alignment and long-term protection.
Key Features:
- Length: 40mm
- Steel Strength Member: 0.8mm diameter pin for rigidity and fiber support
- Outer Diameter (after shrinking): Approximately 2.2mm
- Construction: Dual heat-shrink tubing with inner meltable adhesive and central stainless-steel rod
- Application: Protection of fusion spliced fibers in fiber optic splice trays and enclosures
- Shrink Temperature: Typically around 110°C
- Material: Clear, heat-shrinkable polyolefin with stainless steel strength rod
Benefits:
- Provides reliable mechanical protection and strain relief
- Ensures splice integrity during handling, transport, and installation
- Transparent tubing allows visual confirmation of splice position
- Suitable for all standard singlemode and multimode fiber types
