LMJ MED 72 GREEN SPLIT TRAYS 8X2.2 GREY

£ 0.00 0.0 GBP £ 0.00 VAT Excluded

0.00 VAT Excluded

This combination does not exist.


Product Specification (PDF):

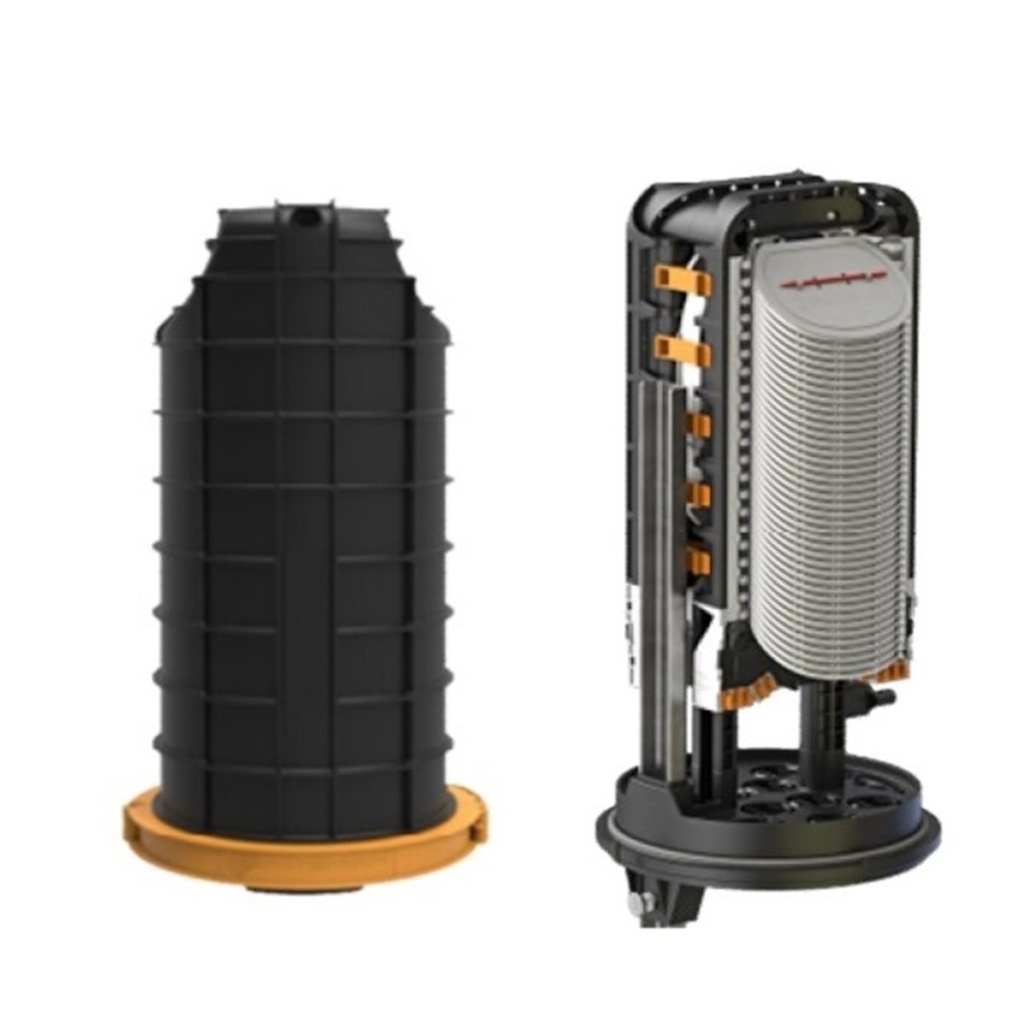

LMJ MED 72 – Green Closure with 8 x 2.2mm Grey Split Trays

The LMJ MED 72 is a medium-capacity, robust fiber optic splice closure designed for access applications in external optical networks, supporting track, spur, and loop configurations. This variant includes a green outer cap, along with 8 x 2.2mm grey split trays, offering fiber management for up to 72 fiber splices—ideal for FTTx, FTTH, and backbone deployments.

Engineered to accommodate a wide range of cable types—including loose tube, central core, Flextube®, and blown fiber—the LMJ supports both Single Circuit Management (SCM) and Single Element Management (SEM). The modular tray system allows for organized routing, multiple splice formats, and optional splitter integration.

Key Features

  • Accommodates up to 72 fiber splices (8 trays x 9 fibers)
  • ✅ Supports SCM and SEM splice tray formats
  • ✅ Modular tray system for flexible network builds
  • ✅ 10 circular ports and 1 oval port for versatile cable configurations
  • ✅ Suitable for aerial, wall-mount, duct, or direct burial installations
  • ✅ Compatible with splitters, splice protectors, and multi-way cable glands
  • ✅ Sealing system rated IP68 for superior environmental protection
  • ✅ UV- and impact-resistant green housing for easy identification
  • ✅ Mechanical cable entry system – no heat shrink required
  • ✅ Available mounting brackets and upgrade kits for easy deployment

📦 Technical Specifications

Capacity & Configuration:

  • Fiber Splice Capacity (SEM): up to 2880 fibers (with 24f trays)
  • Fiber Splice Capacity (SCM): up to 640 fibers (with 4f trays)
  • Maximum Tray Count: 80 trays (SEM) / 160 trays (SCM)
  • Fiber Bend Radius: ≥30mm

Cable Entry:

  • 10 x Circular Ports (4–23mm Ø)
  • 1 x Oval Port (6–21.5mm Ø)
  • Multi-port options for 2-way, 4-way, and 8-way configurations
  • Cable Retention:
    • Circular Port: (Ø/45) x 500N
    • Multi-Port: ≥150N (with Aramid yarns), ≥30N (without)

Materials:

  • Cap & Base: Glass-Filled Polypropylene
  • Clamp: Glass-Filled Nylon
  • Trays: Flame Retardant ABS / HIPS

Environmental Performance:

  • Sealing: IP68 to 5 meters (IEC 61300-2-23)
  • Operating Temperature: -20°C to +60°C
  • Relative Humidity: 5% to 95%

Standards & Testing:

  • Optical: 1310nm, 1550nm, 1625nm
  • Impact, Crush, Vibration, Bending, Torsion: Compliant with IEC and BS standards
  • Thermal Cycling, Dry/Damp Heat: IEC 60068 & IEC 61300 series tested

🔧 Kit Contents

  • Green Cap
  • Base Unit
  • Mechanical Clamp
  • Sealing Gasket
  • Internal Support Frame
  • 8 x Grey 2.2mm Split Splice Trays

Note: Cable entry kits, splice protectors, mounting brackets, and additional trays are sold separately.

🧩 Optional Accessories

  • Oval Port Cable Entry Kits
  • Circular Port Gland Kits (standard and multi-way)
  • Additional Splice Trays (SEM/SCM)
  • Splitter Integration Modules
  • Splice Protectors
  • Wall and Pole Mounting Brackets
  • Closure Upgrade Kits

The LMJ MED 72 delivers a high-performance, scalable, and durable fiber joint solution, perfectly suited for modern optical network rollouts where reliability, flexibility, and ease of maintenance are critical.
