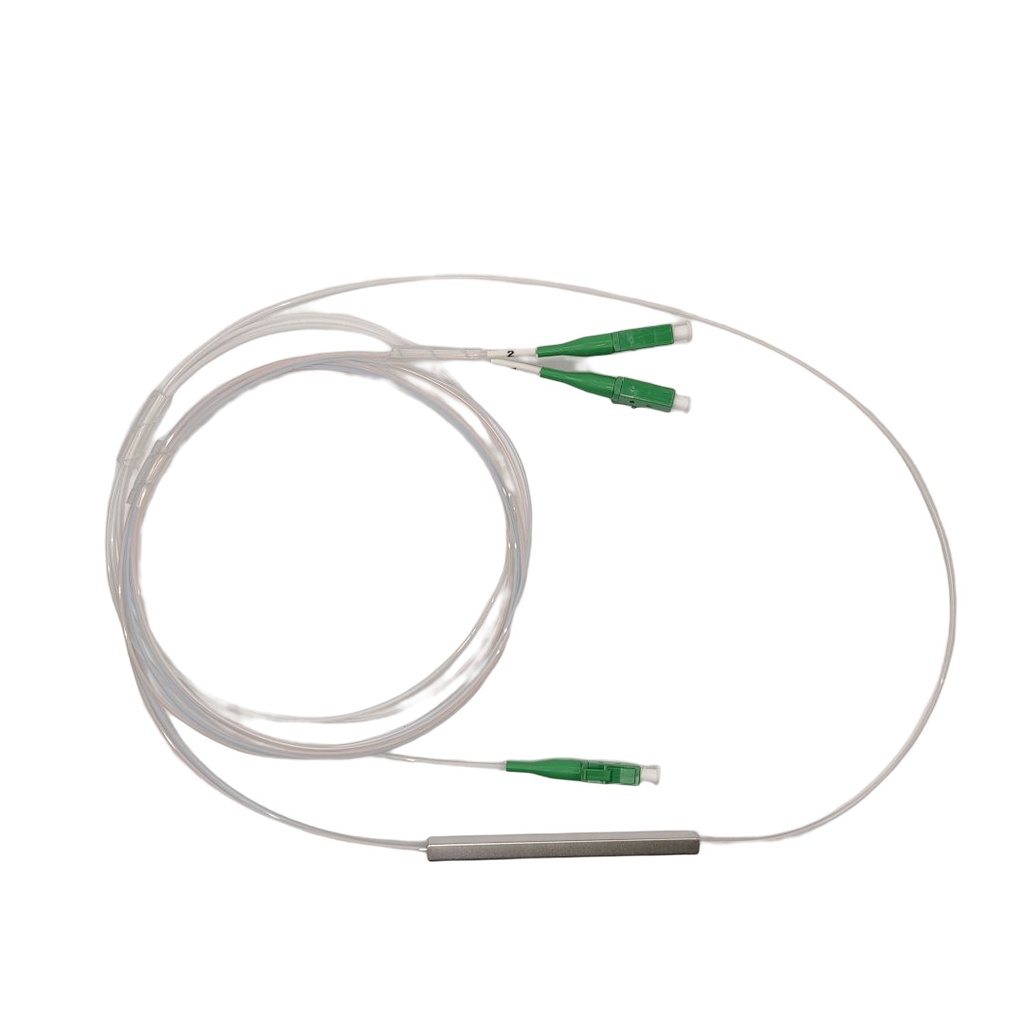

PLC 1x2 Splitter with LCAPC

PLC 1x2 Splitter with LC/APC Connectors | High-Precision Fibre Optic Signal Splitter

The PLC 1x2 Splitter with LC/APC connectors is a compact, factory-terminated optical splitter designed to divide a single fibre signal into two outputs with minimal loss. Featuring LC/APC connectors, it ensures high return loss and reliable performance—ideal for modern FTTx, GPON, and PON network architectures.

Key Specifications:

✅ Splitter Type: 1x2 PLC (Planar Lightwave Circuit)

✅ Connector Type: LC/APC on all ends

✅ Fibre Type: Single-mode (G.657A1 or G.652D)

✅ Operating Wavelength: 1260–1650 nm

✅ Typical Cable Length: 1–2 meters

Features:

✅ Low insertion loss and high return loss

✅ Pre-terminated with LC/APC connectors for plug-and-play setup

✅ Excellent uniformity and wide wavelength compatibility

✅ Compact and rugged design – ideal for fibre trays, wall boxes, and ODFs

✅ Suitable for both indoor and outdoor applications (if protected)

Applications:

✅ Fibre-to-the-home (FTTH) rollouts

✅ GPON/EPON passive optical networks

✅ Optical testing and monitoring setups

✅ Data centres and network distribution frames

A reliable, ready-to-use solution for efficient signal distribution with LC/APC precision—trusted by fibre installers across telecom and enterprise sectors.
