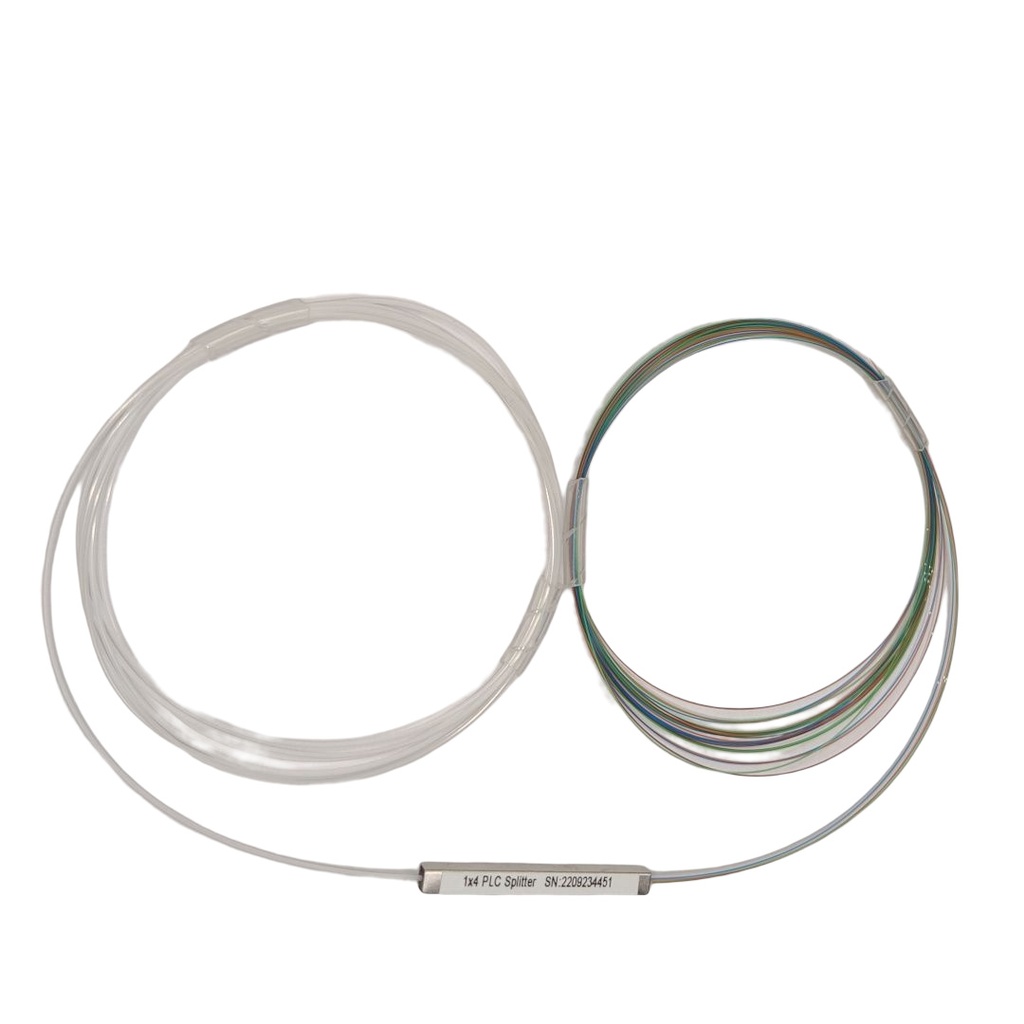

1:4 PLC Splitter Unconnectorized Compact 4x4x40
The 1:4 PLC Splitter Unconnectorized Compact 4x4x40 is a high-performance optical splitter designed for passive optical networks (PON), ideal for FTTx, FTTH, and other fiber optic applications. This planar lightwave circuit (PLC) splitter efficiently divides a single optical signal into four equal outputs with minimal insertion loss and excellent uniformity.
Its compact, unconnectorized design allows easy integration into custom splice enclosures or patch panels, providing flexibility for network installers and system integrators.
✅ Key Features
- ✅ Splitting ratio: 1 input to 4 output ports
- ✅ Compact and lightweight design (approx. 4x4x40 mm)
- ✅ Low insertion loss and high uniformity
- ✅ Wide operating wavelength range (typically 1260–1650 nm)
- ✅ Suitable for unconnectorized fusion splicing
- ✅ High reliability and long-term stability
- ✅ Ideal for use in fiber optic splitters, closures, and cabinets
📦 Specifications
- Splitter Type: 1x4 PLC (Planar Lightwave Circuit)
- Connectorization: Unconnectorized (bare fiber pigtails for splicing)
- Dimensions: Approximately 4mm x 4mm x 40mm
- Operating Wavelength: 1260–1650 nm
- Insertion Loss: Typically < 1.2 dB
- Uniformity: ≤ 0.6 dB
- Directivity: > 55 dB
- Operating Temperature: -40°C to +85°C
This 1:4 PLC Splitter Unconnectorized Compact 4x4x40 is a versatile, efficient solution for splitting optical signals in fiber networks, supporting scalable and reliable broadband service delivery.
