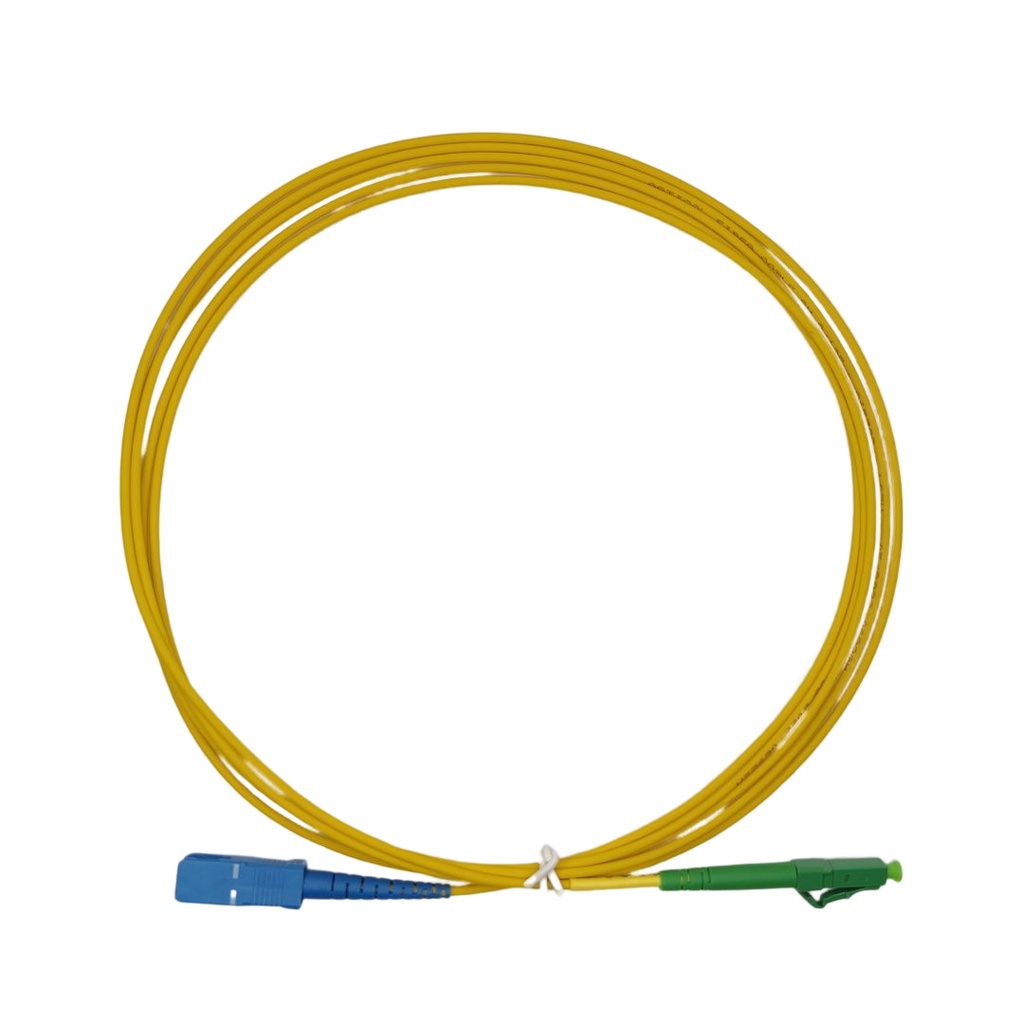

LC/APC to SC Singlemode Patch Lead – SX, 2.5m

The LC/APC to SC Singlemode Patch Lead (2.5m) is a simplex fiber optic cable designed for high-performance optical signal transmission in FTTx, GPON, telecom, and data center environments.

Featuring LC/APC (angled) to SC (flat) connectors, this 2.5-meter simplex lead offers low insertion loss, minimal back reflection, and high durability—making it ideal for precise optical routing between equipment, panels, or enclosures.

Key Features

  • Connector Type: LC/APC (green) to SC/UPC (blue)
  • Fiber Type: Singlemode (OS2, G.657A1 or G.652D)
  • Cable Length: 2.5 meters
  • Simplex design for one-way transmission
  • ✅ Factory-terminated and tested for low insertion & return loss
  • 2.0mm LSZH jacket – flame-retardant and safe for indoor use
  • ✅ Ideal for ODFs, patch panels, ONTs, and CPE equipment

📦 Specifications

  • Length: 2.5m
  • Connector 1: LC/APC (angled polish, green)
  • Connector 2: SC/UPC (flat polish, blue)
  • Fiber Type: Singlemode OS2 (9/125µm)
  • Jacket Material: LSZH (Low Smoke Zero Halogen)
  • Jacket Diameter: 2.0mm
  • Insertion Loss: ≤ 0.3 dB
  • Return Loss: ≥ 60 dB (APC), ≥ 50 dB (UPC)
  • Operating Temperature: -20°C to +70°C

The 2.5m LC/APC to SC SM Patch Lead ensures fast, reliable, and low-loss connections—essential for maintaining signal integrity in modern fiber optic networks.
