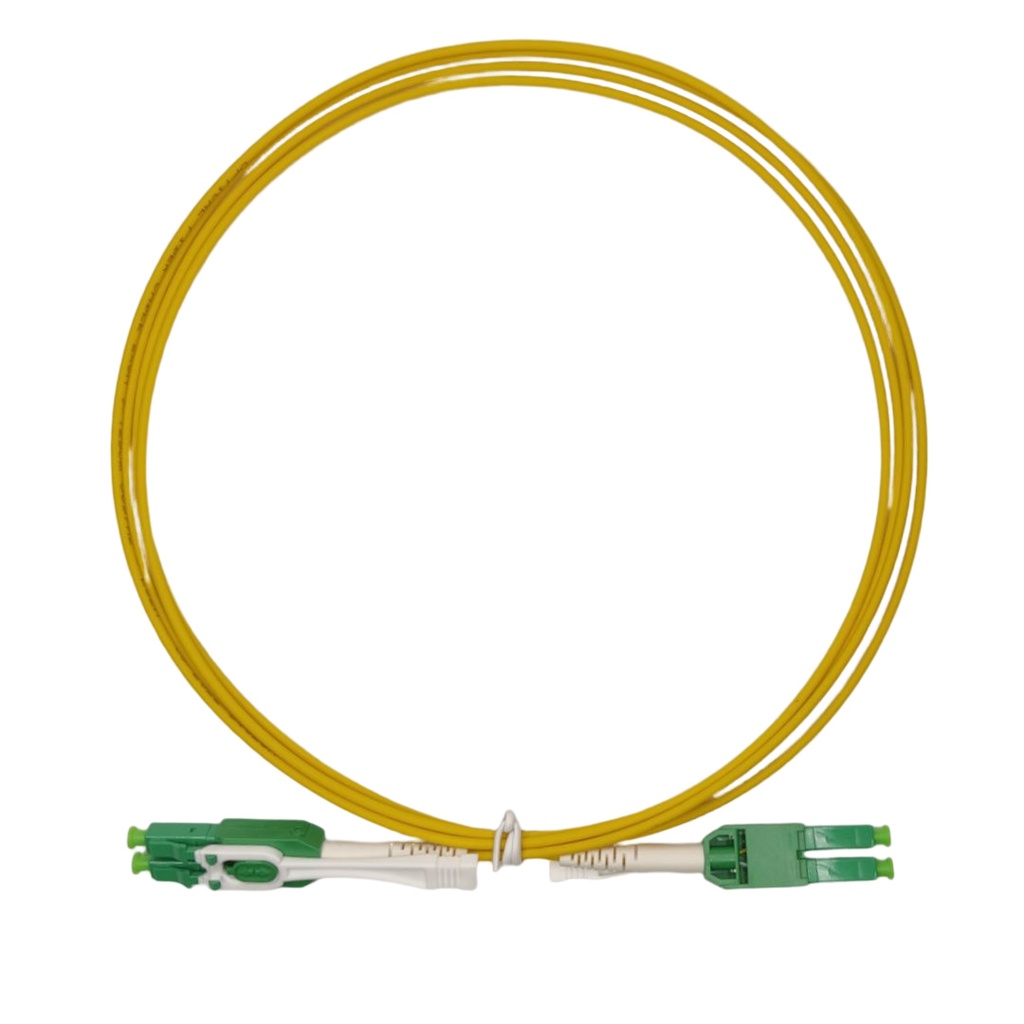

LC/APC to LC/APC Singlemode Patch Lead – 2m Uniboot
The LC/APC to LC/APC Singlemode Patch Lead (2m) with Uniboot design offers a compact, high-performance fiber connection solution ideal for FTTx, data centers, and high-density rack environments. The Uniboot cable design routes both fibers through a single jacket, reducing cable clutter and improving airflow—especially in space-constrained installations.
Featuring angled physical contact (APC) connectors on both ends, this patch lead ensures low insertion loss and minimal back reflection, making it suitable for high-speed and long-distance optical networks.
✅ Key Features
- ✅ Connector Type: LC/APC to LC/APC (angled polish, green)
- ✅ Cable Type: Uniboot (dual fiber in single jacket)
- ✅ Length: 2 meters
- ✅ Singlemode OS2 (9/125µm) for long-range, high-clarity transmission
- ✅ Low Insertion Loss and High Return Loss for signal integrity
- ✅ Space-saving design ideal for high-density patch panels and ODFs
- ✅ LSZH jacket – fire-safe and compliant for indoor use
📦 Specifications
- Cable Length: 2m
- Connectors: LC/APC to LC/APC
- Fiber Type: Singlemode OS2 (G.657A1 or G.652D)
- Cable Type: Uniboot, Duplex (2 fibers in 1 jacket)
- Jacket Diameter: 2.0mm
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 60 dB
- Operating Temperature: -20°C to +70°C
- Polish Type: APC (Angled Physical Contact)
The 2m LC/APC Uniboot Patch Lead combines high performance with space efficiency—delivering a clean, reliable fiber link for today’s most demanding optical networks.
