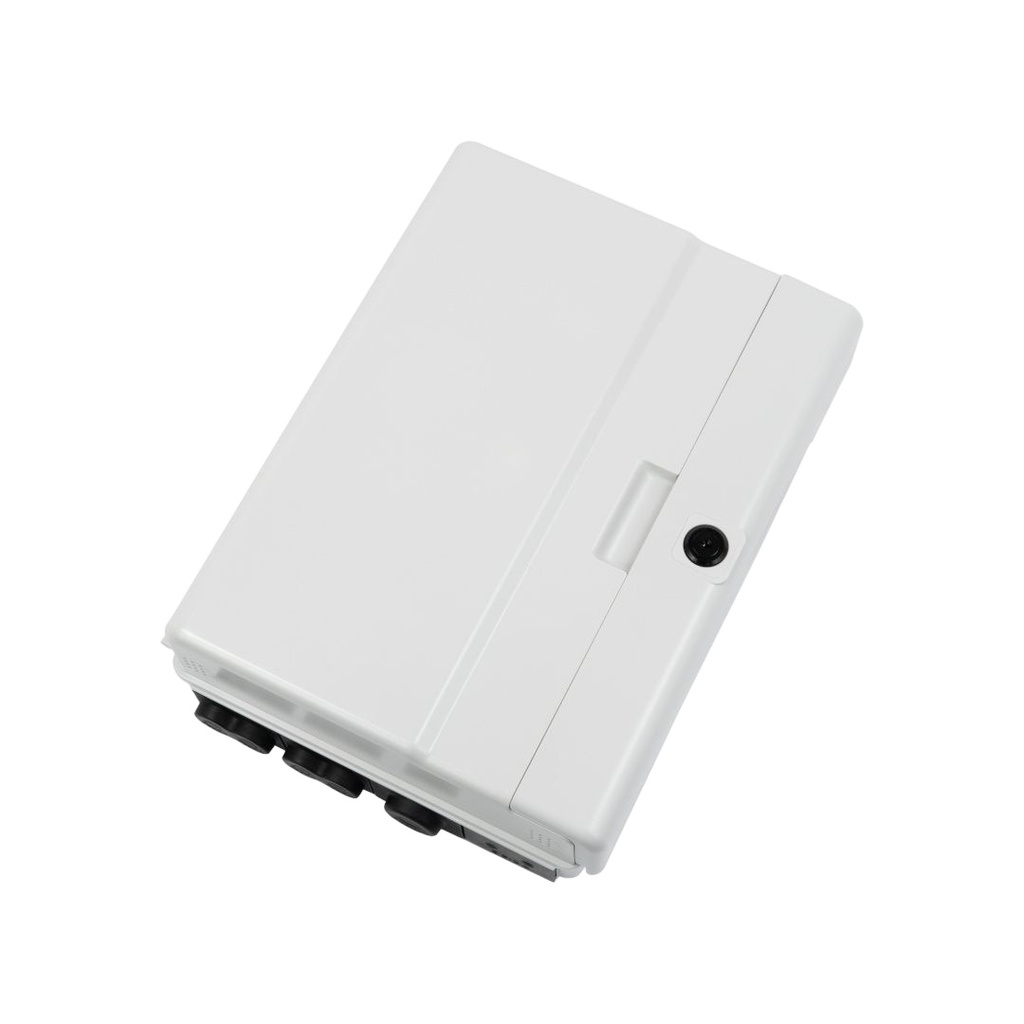

Fiber Distribution Wall Box – Large (96 Coupler Capacity)
The Large Fiber Distribution Wall Box is a high-capacity, wall-mounted enclosure designed to manage, distribute, and protect up to 96 fiber optic connections in FTTx, FTTH, and enterprise network environments. Engineered for scalability, security, and ease of access, this box is ideal for central points in multi-dwelling units (MDUs), commercial buildings, and backbone network interfaces.
The box supports up to 96 SC simplex or 48 LC duplex adapters, and includes ample internal space for fiber splicing, storage, and cable management, ensuring minimal bend loss and organized routing.
Key Features
✅ Accommodates up to 96 SC or 48 LC duplex couplers
✅ Wall-mounted design for indoor or sheltered outdoor use
✅ Integrated splice tray system and fiber routing guides
✅ Lockable door for security and tamper resistance
✅ Cable entry points with rubber grommets for dust/water protection
✅ Made from robust, UV-resistant materials for long-term durability
✅ Ideal for FTTH, FTTB, MDU, data center, and telecom applications
✅ Modular layout for easy installation, upgrades, and maintenance
Applications
- Fiber distribution in Multi-Dwelling Units (MDUs)
- Termination point for building or cabinet fiber drops
- Indoor fiber network cross-connect and patching
- Backbone or riser fiber organization and splicing
Specifications
- Capacity: Up to 96 SC simplex / 48 LC duplex adapters
- Splice Tray Support: Integrated (typically supports up to 4 trays)
- Material: Cold-rolled steel or polycarbonate (varies by model)
- Mounting: Wall-mounted with rear access optional
- Dimensions (Typical): ~450mm x 400mm x 150mm
- Color: Light grey (RAL 7035) or black
- Ingress Protection: IP54 or higher (for indoor/sheltered use)
- Security: Lockable door with optional tamper seal
The 96-Coupler Fiber Distribution Wall Box provides a compact yet powerful solution for managing high-density fiber connectivity—delivering efficient, organized, and secure fiber termination in modern optical networks.
