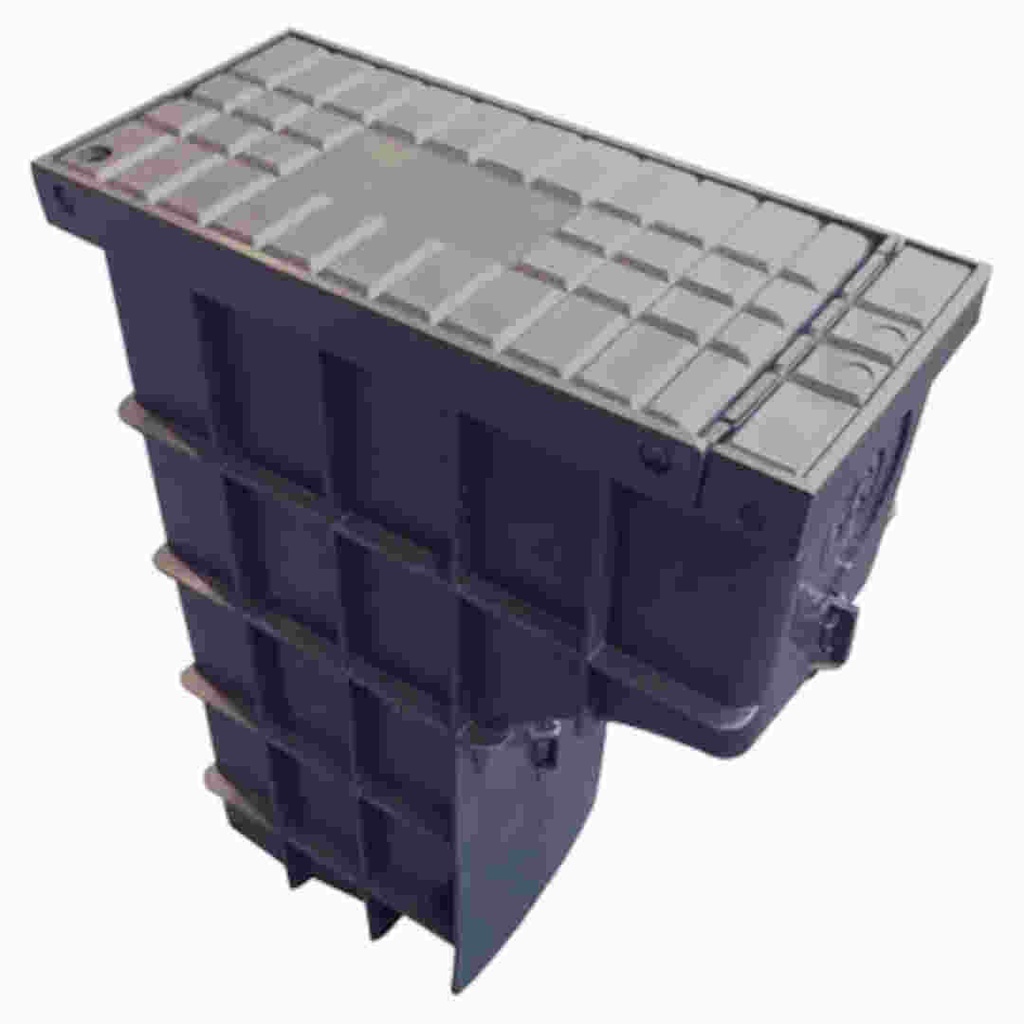

FTTH Footpath Demarcation / Toby Box
Our FTTH Footpath Demarcation (Toby) Boxes provide a secure, durable, and clearly identifiable access point for fiber optic connections at the curbside or footpath. Engineered for FTTx deployments, these boxes mark the transition point between the public fiber network and the customer premises, enabling easy maintenance, efficient troubleshooting, and future scalability.
The Toby Box can house a sealed microduct end, ready for future fiber blowing from the distribution cabinet to the home, or contain an IP65/IP68-rated splice enclosure for terminating drop cables directly on site.
Application Guidance
The Toby Box should be installed:
- As close as possible to the customer boundary or pin kerb to minimize future digging
- With appropriate backfill materials and in accordance with local installation standards
- With the lid opening toward the customer’s property for ease of access
- Centrally, where feasible, to serve two homes via dual microducts
- With each microduct sealed using an end cap to protect against ingress
- With the integrated metal disc in the lid for traceability, even after resurfacing
Key Features
✅ Demarcation point for converting "Homes Passed" to "Homes Connected"
✅ Supports microducts and ducts from 5mm to 54mm OD
✅ Narrow form factor for narrow trenching applications
✅ Integrated drainage holes to prevent water pooling
✅ Accommodates 2 x Emtelle EMU termination boxes
✅ Long lid allows angled drilling and greater accessibility
✅ Can be split to fit over existing cable routes
✅ Ribbed structure for enhanced strength and concrete integration
✅ Lid opens 180° for full internal access
✅ Optional locking mechanism with a security screw
✅ Constructed from 100% recyclable polypropylene
Advantages
✅ Compact and easy to install
✅ Space-efficient for fiber splicing and tube management
✅ More affordable than traditional manholes
✅ Reduced installation and operational costs
✅ Accessible for future upgrades or maintenance
✅ Maintains a visible, accessible point near the premises
✅ UV-protected—engineered for European outdoor conditions
✅ Traceable via embedded metal washer for post-installation detection
Technical Specifications
| Specification | Detail |
|---|---|
| Dimensions (LxWxD) | 214 mm x 100 mm x 301 mm |
| Material | Polypropylene |
| Color | Black |
| Loading Standard | BS5834 Pt2 |
| Weight | 557g |
| Subscriber Capacity | Up to 2 Microducts |
| Internal Connection | 2x Emtelle EMU, 2x Microduct Ports |
| Duct Compatibility | 5 mm – 54 mm OD |
| Traceability | Embedded metal disc |
| Operating Temperature | -45°C to +90°C |
| Badge Options | Plain or Custom |
