Product Description

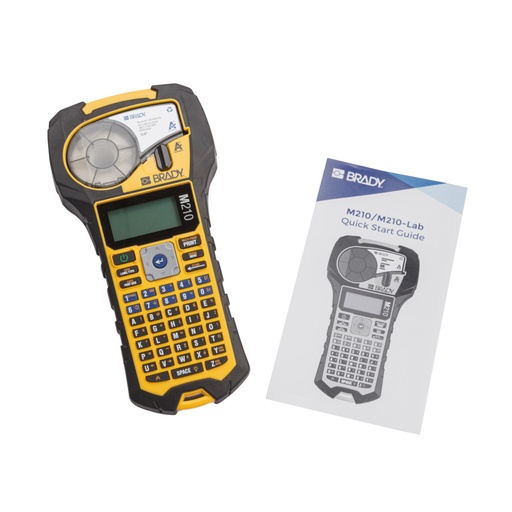

The M210 Portable Label Printer is an all-in-one labeller for voice/datacom, electrical and general industrial teams. Offering drop-lock-and-go cartridges, plus protective rubber bumpers, plus a two year warranty adds up to the brains and brawn needed to take on the day-to-day rigours of any job.
Engineered long lasting material quality: prints durable true-sized 6 – 19 mm wide identification to maximise amount of data
Adjust the length of the labels using the high performance continuous material
Fulfill your requirements with up to 7 different industry specified materials that last
Extremely rugged and durable: drop tested printer, super rugged with moulded rubber bumpers provide optimal protection from falls
Ergonomic cutter and label grabber, holding the label after cutting, preventing it from falling out
Easy to use: ABC keypad, graphics library, hot keys and menu functions for fast label creation.
Smart Cell Technology for automatic label setup and automatic formatting for wire wraps, terminal blocks, patch panels, cable flags and general labels
2 year Warranty
Dimensions
Width – 114.30mm
Height – 241.30mm
Depth – 63.50mm
Weight – 0.75kg
Display Size – 55.88mm
Minimum Label Height – 6.35mm
Min. Label Width – 6.40mm
Dimensions – 114.30mm (W) x 241.3mm (H) x 63.50mm (D)
Material Characteristics
Materials supported – Heat shrink Polyolefin, Nylon Cloth, Paper, Polyester, Polypropylene, Self-laminating Polyester, Self-laminating Vinyl, Vinyl.
Colour – Yellow,Black
Product Features
Bar Code Type – Code 128, Code 39
Auto Shut Off – 10 Minutes
Battery Type – Optional AA Battery, Optional Rechargeable Lithium-Ion Battery
Built-in Symbols – 193
Language Support – Croatian, Czech, Danish, Dutch, English/English US, Estonian, Finnish, French, German, Hungarian, Italian, Norwegian(Bokmal), Polish, Portuguese, Romanian, Slovak, Slovenian, Spanish (universal), Swedish, Turkish.
Calibration – Automated through Smart Cell.
Cutter – Single Hand Manual Actuate, Straight Cut, With label retention
Display Type – Monocolour LCD Screen
Interface Type – ABC Keypad
Internal Memory Capacity – 16MB (2MB available for storage, stores 12 labels).
Barcode Symbologies – 2D – Data Matrix, QR Code
Keyboard Type – ABC
Operating Humidity Range – 20% to 90% (non-condensing)
Operating Temperature – 4℃ - 43℃
Power Supply Voltage – 110-240V
Printing Wizards – Flags, Patch Panel, Terminal Block, Wire Wrap
Recharge Time – 2.5 hours
Shipped With Battery – No
Storage Humidity – 10% - 90% (non-condensing)
Storage Temperature - -18℃ - 43℃
Printing Specifications
Print Technology – Thermal Transfer#
Print Speed (mm/second) – 10.00mm/s
Printing Functions – Auto Format, Date/Time Stamp, Fixed Length, Justification, Multi-Copy, Serialisation, Vertical
Colour Capability – Monocolour
Resolution (dpi) – 203dpi
Display Resolution – 132 x 64 pixels
Max. Label Width (mm) – 19.05mm
Max. Linder Width (mm) – 22.22mm
Recommended Usage Per Day (based on 8hrs/day, 5days/week) – 100
Drop Test – Resistant to 1.8metre drops
What’s Included
Includes – This printer ships in a carton pack with a Quick Start Guide and a M21-750-499 label cartridge.
Manufacturers Warranty – 2 years
Compliance
UNSPSC – 45101520
RoHS Compliance Status – Compliant with Directive 2011/65/EU and 2015/863
